Winchester 14 SEER R-410A Mobile Home Split System Air Conditioning System with 30 ft. Line Set

[tabby title=”Description”]

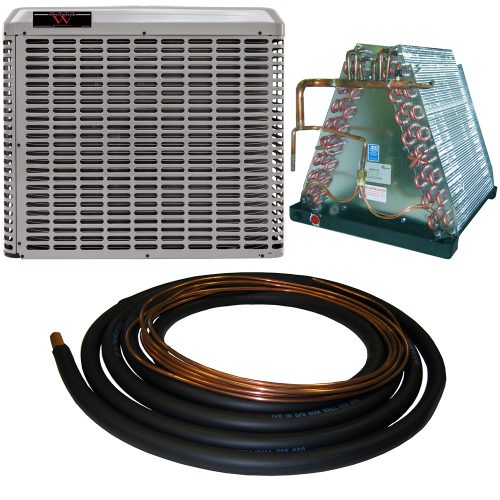

Keep your home cool and comfortable with this high quality 14 SEER air conditioning system which is designed for mobile homes and manufactured homes. The A/C system consists of the outdoor air conditioning condenser, indoor uncased evaporator coil, and 30 ft. line set, and is designed to be used with a new or existing gas or electric furnace – available separately. The condenser features a scroll compressor, easy internal access, and is charged with enough R-410A refrigerant to accommodate 15 ft. of line set. Top air discharge design and compact cabinet size are great for multi-unit placement outdoors. The matched, pressure tested indoor evaporator coil comes from the factory filled with dry nitrogen. The 30 ft. line set includes a 3/8 in. liquid line and 3/4 in. insulated suction line, and can be cut to length based on the installation application. All systems are AHRI Certified and CSA approved. Final connections from line set to coil and condenser, and system start-up must be done by a certified technician. The system is designed to be used with a new or existing furnace which is available separately.

5-Year Limited Parts and Compressor Warranty*

WARNING: Cancer and Reproductive Harm –

*Please Note: The equipment must be registered online at within 90 days of purchase for replacement or closing for new home construction.

Condenser Install Manual

Users Manual

Condenser Tech Guide

[tabby title=”Features”]
Sweat fit system includes: outdoor condenser, mobile home uncased indoor coil, thermal expansion valve (for some systems), and line set; a furnace or air handler is required for system operation

Condenser is factory charged with enough R-410A refrigerant for 15 ft. of line set; longer line set length requires proper charge to be added in the field by a qualified technician

The outdoor condenser has a scroll compressor which is protected internally by a high-pressure relief valve and temperature sensor, and externally by the system high pressure switch; the liquid line filter-drier is factory installed to protect the compressor against moisture and debris

The uncased evaporator coil has liquid and suction line connections with a 90° bend which is designed for mobile home and manufactured housing installation applications; this allows the refrigerant line to be connected inside the cabinet of the furnace. Please note, some coils are supplied with a TXV that meters the refrigerant, and is to be field installed

The A/C system does require a furnace or air handler to operate and circulate the air throughout the home, and may be matched with the properly sized WINCHESTER WEFC series electric furnaces available separately

30 ft. line set includes 3/8 in. liquid line and 3/4 in. insulated suction line

Should the installation require a return air coil box housing with filter, the optional WRAF-01, is available separately

Not designed for residential applications

[tabby title=”Sizing Guide”]


Selecting an A/C system for mobile homes is a little different than for residential housing. The following link can be used as a guide to determine the proper size equipment based on the sq. ft. and geographic location of the home. Many times the mobile home will have the equipment sizing on a data tag located near the electrical supply, or in a kitchen cabinet.
Mobile Home Sizing Guide


NOTE: These tables and charts are intended to be used as a guideline only.
[tabby title=”Models & Specs”]
14 SEER R-410A Air Conditioning Systems

System Model Number Ton Size Compressor Type Max Amps Condenser H x W x D (in.) Coil Width Option(s) Ship Wt (lbs.) Energy Guide
4WMH24S-30 2.0 Scroll 20 30 x 29.25 x 29.25 14.5 / 17.5 259 EnergyGuideIcon2
4WMH30S-30 2.5 Scroll 30 30 x 29.25 x 29.25 17.5 / 21 268 EnergyGuideIcon2
4WMH36-30 3.0 Scroll 35 36.25 x 29.25 x 29.25 17.5 / 21 289 EnergyGuideIcon2

Optional Air Conditioning Accessories

Item No. Description Weight (lbs.)
ACPD3030-3 3″ x 30″ x 30″ Condenser Pad/span> 10
ACPD3636-3 3″ x 36″ x 36″ Condenser Pad) 15
1F78-151 5/2 Day Heat/Cool Programmable Thermostat (Single Stage) 1
WRAF-01 Return Air/Coil Box for Mobile Home Electric Furnaces) 15

Mobile Home Uncased Coil Specifications

Model Number Uncased Coil H x W x D (in.) Liquid / Vapor Line Connections
WS4Y-3048 18″ x 18″ x 19.5″ 3/8″ X 3/4″
WS9PG4 18″ x 18″ x 19.5″ 3/8″ X 3/4″
WSKPW4 18″ x 18″ x 19.5″ 3/8″ X 3/4″
